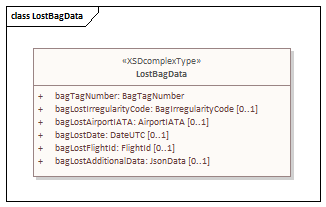

LostBagData



ADD TermDescription
BagTagNumber

Mandatory. The original bag tag number of the lost bag.

BagNewTagNumber

The new bag tag number, if the bag has been given a new tag (e.g. a rush tag when it is forwarded).

BagLostReportId

The report number in the tracing system (in WorldTracer, the file number).

BagLostReportingAirportIATA

The station where the lost bag report was created.

BagLostReportingAirlineIATA

The airline that created the lost bag report.

BagLostIrregularityCode

Mandatory. The irregularity code.

BagLostAirportIATA

The station responsible for the bag being lost.

BagLostFlightId

The flight the bag missed at BagLostAirportIATA.

BagLostDateMandatory. The date (UTC) the bag was lost. If this is not known, use the date of the SOBT (UTC) of the flight the bag was supposed to leave on.
BagLostAdditionalData

Other data from the tracing system, as JSON. See below.



BagLostAdditionalData

BagLostAdditionalData can contain any data from the tracing system that has no element of its own. The content is not validated. For WorldTracer, Avinor recommends sending the CSV columns below that have no element of their own, using the column names as keys and times in UTC (ISO 8601). Example:

{
  "ROUTING": "BCN/OSL/AES",
  "INB_FLT_ID": "DY1741",
  "INB_DATOP": "2017-09-11",
  "INB_STNF": "HAU",
  "INB_DI": "D",
  "INB_STA": "2018-02-12T09:25:00Z",
  "INB_ATA": "2018-02-12T10:19:00Z",
  "OUT_FLT_ID": "DY414",
  "OUT_DATOP": "2017-09-11",
  "OUT_DI": "I",
  "OUT_STD": "2018-02-12T10:40:00Z",
  "OUT_ATD": "2018-02-12T10:53:00Z",
  "TRANSFERTIME_MINS": 34,
  "AC_TYPE_CODE_IATA": "737"
}

Personal data about the passenger (name, address, phone number, e-mail etc.) must not be sent.

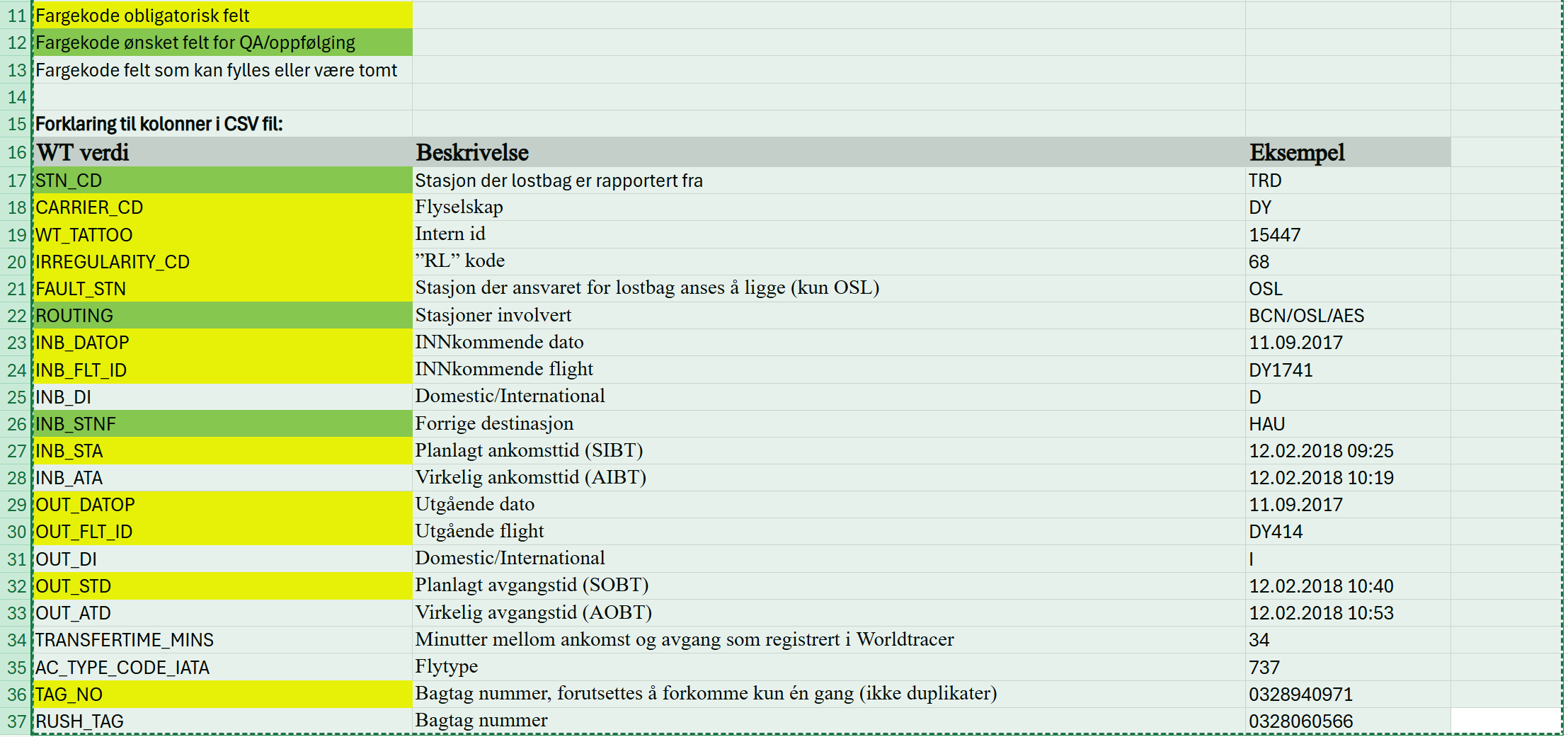

Forklaring til kolonner i WorldTracer CSV fil:

WT verdiKravBeskrivelseEksempel
ROUTINGØnsket for QA/oppfølgingStasjoner involvertBCN/OSL/AES
INB_DATOPObligatoriskINNkommende dato11.09.2017
INB_FLT_IDObligatoriskINNkommende flightDY1741
INB_DIValgfriDomestic/InternationalD
INB_STNFØnsket for QA/oppfølgingForrige destinasjonHAU
INB_STAObligatoriskPlanlagt ankomsttid (SIBT)12.02.2018 09:25
INB_ATAValgfriVirkelig ankomsttid (AIBT)12.02.2018 10:19
OUT_DATOPObligatoriskUtgående dato11.09.2017
OUT_FLT_IDObligatoriskUtgående flightDY414
OUT_DIValgfriDomestic/InternationalI
OUT_STDObligatoriskPlanlagt avgangstid (SOBT)12.02.2018 10:40
OUT_ATDValgfriVirkelig avgangstid (AOBT)12.02.2018 10:53
TRANSFERTIME_MINSValgfriMinutter mellom ankomst og avgang som registrert i Worldtracer34
AC_TYPE_CODE_IATAValgfriFlytype737
